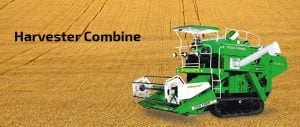

IndoFarm Crawler Combine harvester: AGRICOM 1070 SW

$45,000.00

Please call or email for pricing, servicing and delivery
TECHNICAL SPECIFICATIONS OF AGRICOM 1070 SW
  • 4 Cyl. with Powerful Engine
  • 60 HP@2800 rpm power
  • Water Cooled Cooling System
  • Cutting bar width 2.28 m (7.5 feet)
  • Upper sieve Area 1.38 m²
  • Ground Contact Area 16470 cm²
  • Total Weight 4875 Kg. approx
Add to Quote

Add to wishlist
Compare
SKU: GA-CC-harvester-AGRICOM-1070-SW Categories: , Tag:
Description
Please call or email for pricing, servicing and delivery
TECHNICAL SPECIFICATIONS OF AGRICOM 1070 SW
  • 4 Cyl. with Powerful Engine
  • 60 HP@2800 rpm power
  • Water Cooled Cooling System
  • Cutting bar width 2.28 m (7.5 feet)
  • Upper sieve Area 1.38 m²
  • Ground Contact Area 16470 cm²
  • Total Weight 4875 Kg. approx
Additional information
Standard Fitments Features Details

Make: TATA 497SP27
No. of Cylinders: 4
Power: 60 HP@2800 rpm
Air-Cleaner: Dry Type
Cooling System: Water Cooled
CUTTER BAR MECHANISM

Cutting bar width: 2.28 m (7.5 feet)
Cutter Height: Cutter Height 30-1295 mm
TRANSMISSION/DRIVE

Transmission Hydrostatic transmission comprising of hydraulic variable displacement, double pump & two fixed displacement motors
REEL

Reel Drive: Chain & Sprocket
Height Adjustment: Hydraulic
Feeder Housing: Chain type feed rack
THRESHING DRUM

Width (mm): 760
Diameter (mm): 605
Speed (rpm): 610
Speed Adjustment: Mechanical
CONCAVE

Length 770
Clearance Entrance: 13-35 mm Exit 9-12 mm
Adjustment: Mechanical
Straw Walker

No. of Straw Walker: 4
No. of Steps:4
Length (mm): 2900
Width (mm):178
Cleaning Sieves

Upper sieve Area: 1.38 m²
Lower Sieve Area: 1.12 m²
CAPACITIES

Grain Tank: 1.25 m³
Fuel Tank: 160 Ltr.
ELECTRICAL SYSTEM

Electrical system: 12V, 120 Ah Batter starting, complete lighting equipment, front & rear lights.
TRACK ASSEMBLY

Length of belt on ground:1830 mm
Wheel Base:1435 mm
Width of Belt: 450 mm
No. of Track Roller (each side): 5
No. of Rubber Grousers (each side): 60
Height of Grouser: 30 mm
Ground Contact Area: 16470 cm²
MAIN DIMENSIONS:

Length:6750 mm
Width: 2645 mm
Height: 3050 mm
Ground Clearance: 260 mm
Total Weight: 4875 Kg. approx.
